The Block traction batteries are part of our highly efficient and modular lithium-ion energy system. Our batteries are widely used, including in industrial trucks originally designed to be powered by lead-acid batteries. Thanks to our tray system, no vehicle-specific modifications are required. designed for tough applications and repeated deep discharging makes the ZEMBATT Lithium Block traction battery the definitive choice for robust traction applications including Home Medical Equipment (HME), Electric Vehicle, Automated Guided Vehicles (AGV), aerial lifts, floor cleaning equipment, robotics, materials handling, renewable energy, and marine / RV applications.
Specifications

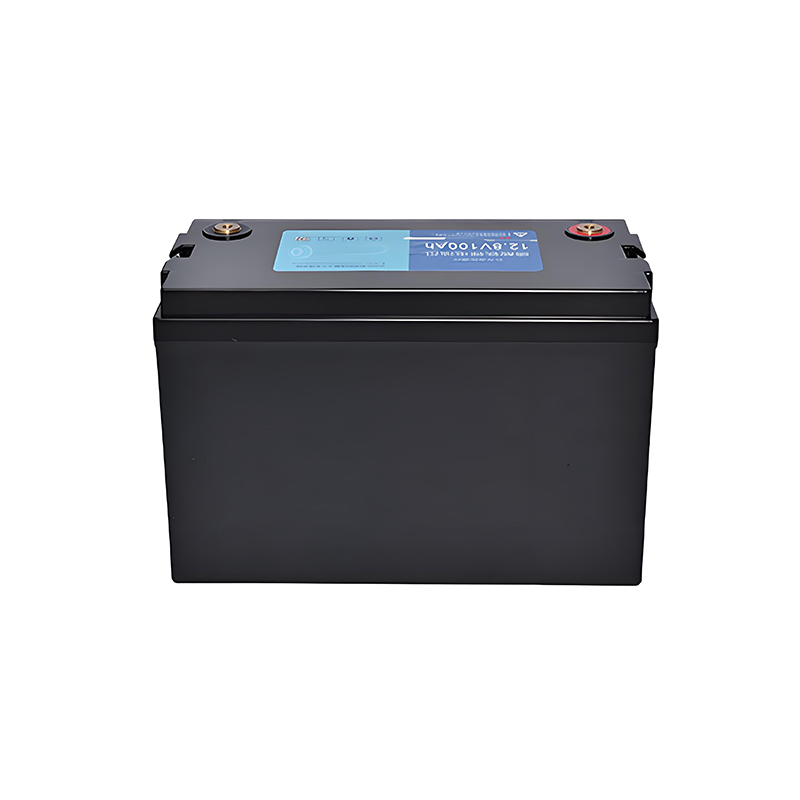

12V Forklift Battery is a reliable and efficient power source designed for small electric forklifts, pallet trucks, and material handling equipment. It provides stable energy output, long service life, and consistent performance for light-duty industrial applications.
With advanced battery technology, the 12V forklift battery ensures safe operation, low maintenance, and high energy efficiency in warehouse and logistics environments.
| Nominal capacity | 50Ah |
| Open circuit voltage | 12.8V |
| Self discharge | <3% per month |
| Cycle life | >3000 (at 10C discharge, 100% DoD) |
| EqPb (Equals Lead acid battery) | 60Ah |
| Voltage | 12V |
| Dimensions (LxWxH) | 197*166*173mm |
| Weight | 6.2 kg / 13.7lbs |
| Case material | PC -ABS |
| Ingress protection | IP66 |
| Cell type / Chemistry | Diamond-LiFePO4 |
| Maximum Modules in Series | 4 |
| Maximum Continuous Discharge Current | 50 A |
| Peak Discharge Current | 100 A (7.5 s ±2.5 s) |
| BMS Discharge Current Cut-Off | 170 A ±20 A (10 ±5 ms) |
| Recommended Low Voltage Disconnect | 11V |
| BMS Discharge Voltage Cut-Off | 8 V (2.0 ±0.08 vpc) (140 ±60 ms) |
| Reconnect Voltage Cut-Off | 9.2 V (2.3 ±0.1 vpc) |
| Recommended Charge Voltage | 14.2 V -14.6 V |
| Charge temperature | 0°C to 50°C / 32°F to 131°F |
| Discharge temperature | 20°C to 55°C / 4°F to 131°F |
| Storage temperature | 0°C to 40°C / 4°F to 113°F |
| Certifications | CE, UN 38.3, UL,IEC, CB, ISO9001 |
| Shipping classification | UN 3480 |
| Vehicle communication mode | CAN |
| Display communication method | RS485 |
Provides consistent voltage to ensure smooth and reliable forklift operation.
Designed for extended charge-discharge cycles, reducing replacement frequency.
Optimized energy utilization for longer working hours and improved productivity.
Built-in protection against overcharge, over-discharge, and short circuit.
Maintenance-free design reduces operational costs and downtime.
Space-saving design suitable for small forklifts and compact equipment.

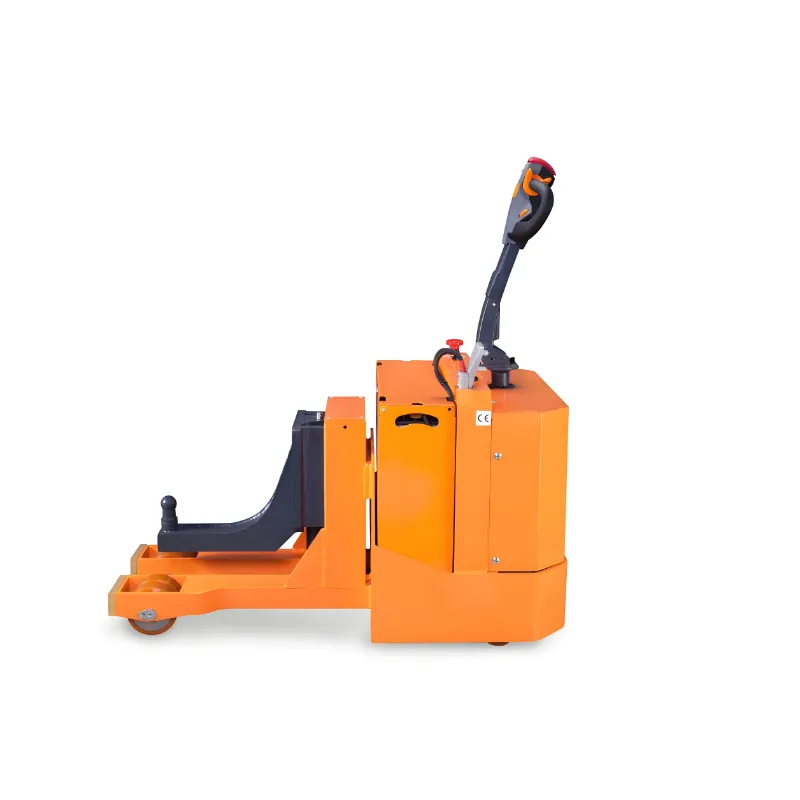

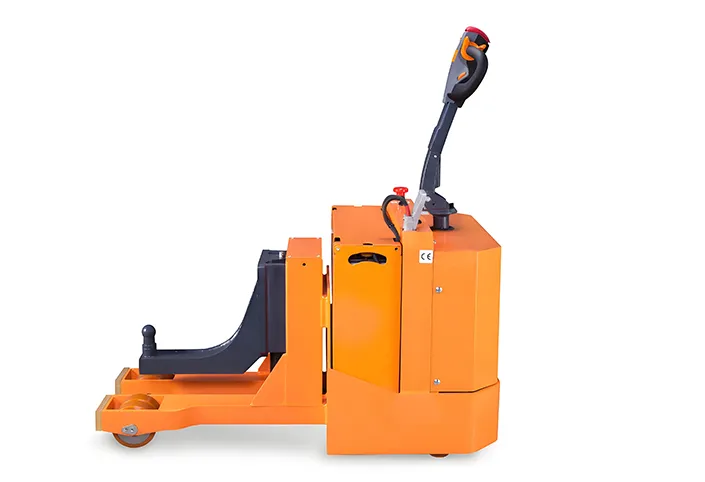

Electric pallet trucks
Small forklifts and stackers
Warehouse logistics equipment
Light-duty material handling systems
Indoor industrial transport equipment
Retail and distribution centers
It is mainly used for pallet trucks, small forklifts, and light-duty warehouse equipment.
Yes, depending on capacity configuration, it can support extended operation.
Yes, we provide customized voltage, capacity, and housing designs.
Lithium versions are typically maintenance-free, while lead-acid options require basic maintenance.
Performance
Low maintenance
Fast charging
Safest lithium technology
High discharge currents
High capacity
Low Temperature and High Efficiency
High cycle count
Low self-discharge
