Plastic shell motive batteries offer advantages for users in a broad range of fields, Such as eco-friendly and economical.
Harness the power of ZEM 24V plastic cased power batteries, a reliable partner for your industrial applications. Featuring high energy density and protected by a durable plastic casing, the battery reflects ZEM 's commitment to providing practical, efficient and safe power solutions.
Compatible vehicle models:
ECH12/EPT12-EZX/EPL152/EPL1531 /MT12

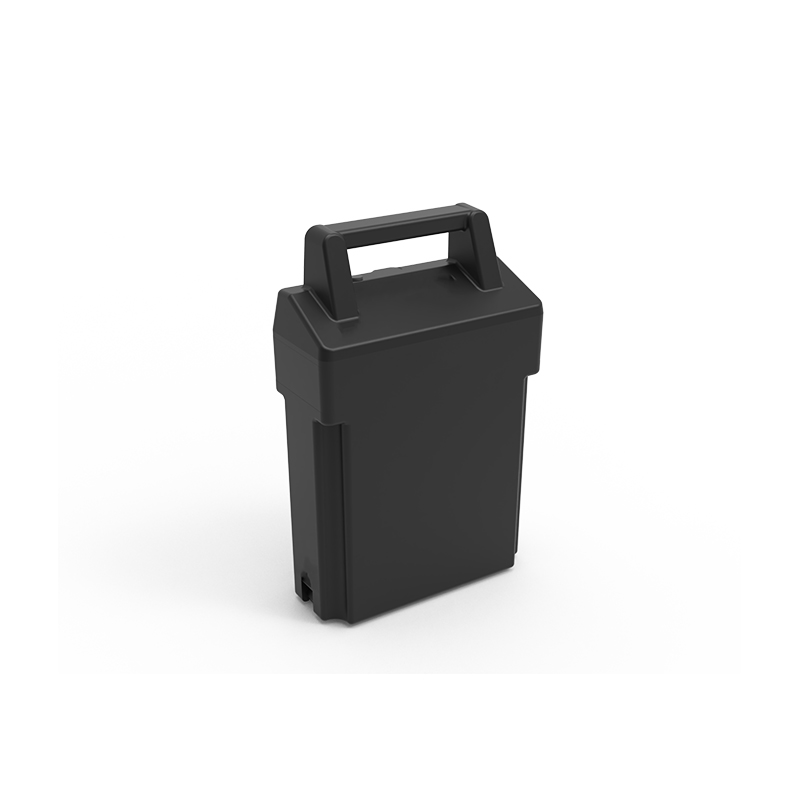

24V Plastic Shell Motive Battery Technical Parameters
ZEMBATT 24V Plastic Shell Motive Battery is designed for compact electric material handling equipment that requires a lightweight, integrated and easy-to-install lithium power solution.
Using LiFePO4 battery technology, the 24V motive battery can be configured for pallet trucks, walkie stackers, AGVs, electric trolleys and other compatible industrial equipment.
The plastic shell design helps create a compact battery structure while allowing the battery voltage, capacity, dimensions, connectors, BMS communication and charging solution to be customized according to the equipment.
Model | EMP-20 | EMP-25 |
| Battery | LFP | LFP |
| Nominal Capacity | 25.6V20Ah | 25.6V25Ah |
| Stored Energy | 0.51kWh | 0.64 kWh |
| Dimension(L×W×H) | 197×90×302mm | 197×90×302mm |
| Net Weight | 4.8kg | 4.8kg |
| Max continuous charge | 10A | 10A |
| Continuous discharge | 20A | 20A |
| Working Current | 20A | 25A |
| Protection Current | 100A/10S | 100A/10S |
| Peak Discharge Current | 200A/320uS | 200A/320uS |
Explore Our 24V Motive Battery
High Energy Density: This battery boasts a high energy density providing an impressive run time for your devices.
Superior Quality Plastic Shell: Protection is guaranteed with its plastic shell casing which resists impact and reduces potential damage.
24V Voltage: Optimal voltage for a variety of motive applications.
Cost-effective: A balance between performance and cost, providing high value.
Why Use a Plastic Shell Motive Battery?
ZEM' s Motive Battery is encased in a resilient plastic shell that protects it from environmental damage and physical impacts. This safe-guarding feature not only prolongs the lifespan of the battery but also ensures stability, thereby enhancing operational convenience in diverse environments.
In terms of design, ZEM is proud to uphold its commitment to sustainability with this motive battery. Encased in a plastic shell that is made from recycled materials, ZEM's motive battery is not only powerful and long-lasting but also environmentally friendly.

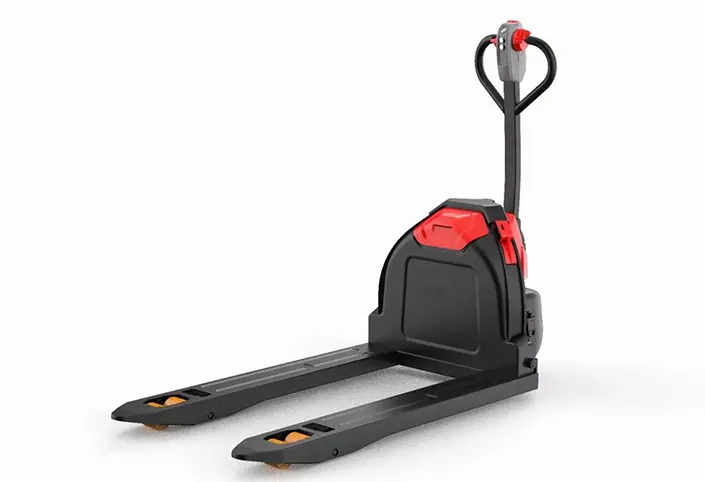

24V lithium motive batteries are commonly used in compact pallet trucks that require reliable power for horizontal transport inside warehouses and logistics centers.
Walkie stackers need battery power for both travel and lifting operations.
A properly sized 24V motive battery can provide sufficient energy for daily stacking and warehouse handling operations.
24V battery systems can also be customized for compatible automated guided vehicles and autonomous mobile equipment where compact battery dimensions and communication capability are important.
Small electric trolleys and carts often use lower-voltage battery platforms because of their compact drive systems and moderate power requirements.
For compact warehouse equipment operating in narrow aisles, battery dimensions and runtime are especially important.
ZEMBATT states that its 24V battery solutions are used for narrow-aisle industrial equipment, pallet trucks and walkie stacker applications.
Need a compact 24V LiFePO4 motive battery for a pallet truck, stacker, AGV or other material handling equipment?
Send ZEMBATT your equipment model, original battery specifications, compartment dimensions, working hours and order quantity. Our team can configure the battery capacity, plastic enclosure, BMS, connectors and matched charging solution for your application.
