ZEM– 24V Motive Battery Manufacturer and Supplier, ZEM motive battery is one of the best in class propulsion battery with an excellent discharge performance.
24V Motive Battery Technical Parameters

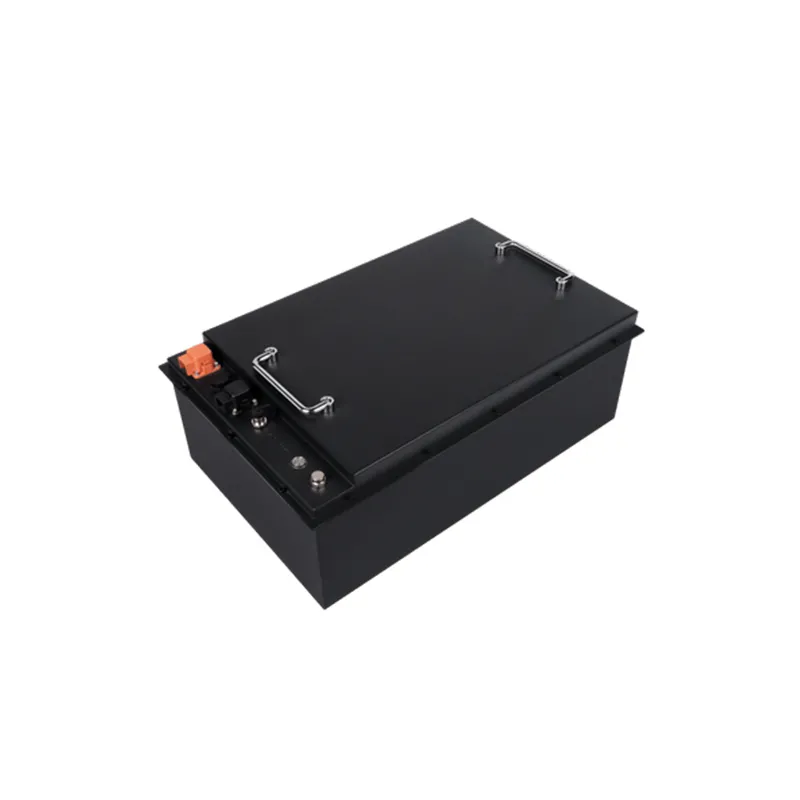

The 24V LiFePO4 Motive Battery is a high-performance lithium power solution designed for light-duty industrial electric equipment such as AGVs, pallet trucks, floor scrubbers, and warehouse automation systems.
Built with advanced lithium iron phosphate technology, it delivers stable output, fast charging, and long service life, making it an ideal replacement for traditional lead-acid batteries in 24V industrial applications.
ZEM manufacturers and supplies Motive Batteries to suit a wide range of OEM applications. Innovative secondary battery technology based on solid engineering knowledge to provide cost-effective storage solutions for the commercial market.
| Code | EM2460 | EM2490 | EM24120 | EM2430 | EM24150E | EM24175E | EM24210E |
| Li-Battery Size | 25.6V 60AH | 25.6V 90AH | 25.6V 120AH | 25.6V 30AH | 25.6V 150AH | 25.6V 175AH | 25.6V 210AH |
| Cell Layout | 2P8S | 3P8S | 4P8S | 1P8S | 1P8S | 1P8S | 7P8S |
| Total Capacity(KWH) | 1.53 | 2.3 | 3.07 | 0.77 | 3.84 | 4.48 | 5.37 |
| Dimension(MM) | 270*175*210 | 330*270*210 | 350*270*210 | 245*150*210 | 505*260*210 | 505*260*210 | 550*350*210 |
| Weight(KG) | 14.6 | 22.5 | 26.7 | 10.5 | 37.9 | 39.3 | 48.5 |
| Packaging Dimension(MM) | 320*225*252 | 340*330*263 | 400*320*252 | 285*190*263 | 545*300*263 | 545*300*263 | 590*390*263 |
| Rough Weight（KG） | 15.1 | 23.2 | 27.4 | 11.1 | 38.9 | 40.3 | 49.7 |
| Working Current | 60 | 90 | 120 | 30 | 150 | 175 | 210 |
| Protection Current | 12A/60S0 | 270A/60S | 360A/60S | 60A/60S | 450A/60S | 525A/60S | 630A/60S |
| Peak Discharge Current | 240A/30S | 360A/30S | 480A/30S | 120A/30S | 600A/30S | 700A/30S | 840A/30S |
| Serial Connection | Max 2S | Max 2S | Max 2S | Max 2S | Max 2S | Max 2S | Max 2S |
| Parallel Connection | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P | Max 4P |
| IP Protection | IP 65 | IP 67 | IP 65 | IP 65 | IP 67 | IP 67 | IP 67 |
Stable output ensures consistent performance for light-duty equipment.
No water filling, no acid maintenance, and minimal service requirements.
Fast charging and opportunity charging support reduce downtime.
Available for:
Custom capacity design
OEM branding
Industrial equipment integration
Explore Our 24V Motive Battery
Compared to a 12V battery, a 24V battery is more powerful, with more capacity and higher load capacity;
The profound cycle ability is much better than a 12V battery;
Using the same battery size, the weight of 24V Motive Battery will be less than half of that of 12V Motive Battery;
24V Motive Battery have a longer service life than 12V batteries;
What Type Of Battery Is A Motive Battery?
Motive batteries are a type of deep cycle battery. They are designed to be discharged and recharged many times over the course of their life. Motive batteries typically have a longer lifespan than other types of batteries and can withstand more charging cycles before they need to be replaced.

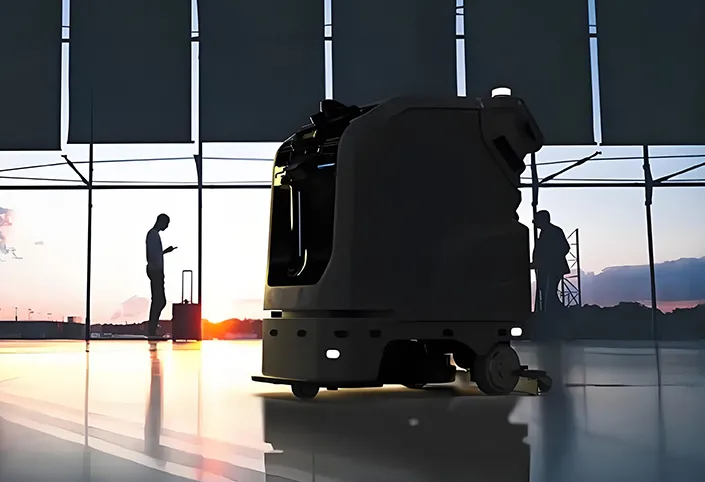

A 24V motive battery is mainly used for light-duty industrial electric equipment such as AGVs, pallet trucks, floor scrubbers, and small warehouse handling systems. It provides stable low-voltage power for continuous industrial operation.
Yes. The 24V LiFePO4 battery is designed as a direct replacement for lead-acid batteries. It offers longer cycle life, faster charging, lighter weight, and does not require maintenance.
Depending on usage conditions, it typically lasts 3000 to 6000+ charge cycles, which is significantly longer than traditional lead-acid batteries.
Yes. The 24V motive battery supports fast charging and opportunity charging, which allows equipment to be charged during short breaks to improve operational efficiency.
It is commonly used in:
AGVs (Automated Guided Vehicles)
Electric pallet trucks
Floor cleaning machines
Small forklifts
Light industrial automation equipment
No. The LiFePO4 system is maintenance-free. There is no need for water filling, acid handling, or regular equalization charging.
Yes. The Motive Battery uses LiFePO4 chemistry, which provides high thermal stability, built-in BMS protection, and safe operation in industrial environments.
Yes. ZMT support OEM/ODM services including custom capacity, dimensions, connectors, communication protocols, and branding.
The built-in Battery Management System provides:
Overcharge protection
Over-discharge protection
Overcurrent protection
Short circuit protection
Temperature monitoring and balancing
The 24V Motive Battery system is ideal for light-duty equipment because it offers a compact design, lower cost, and safe low-voltage operation, making it suitable for AGVs and warehouse tools.
