Applicable scope: hospital, bank data center, base frame type home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Basic Parameters

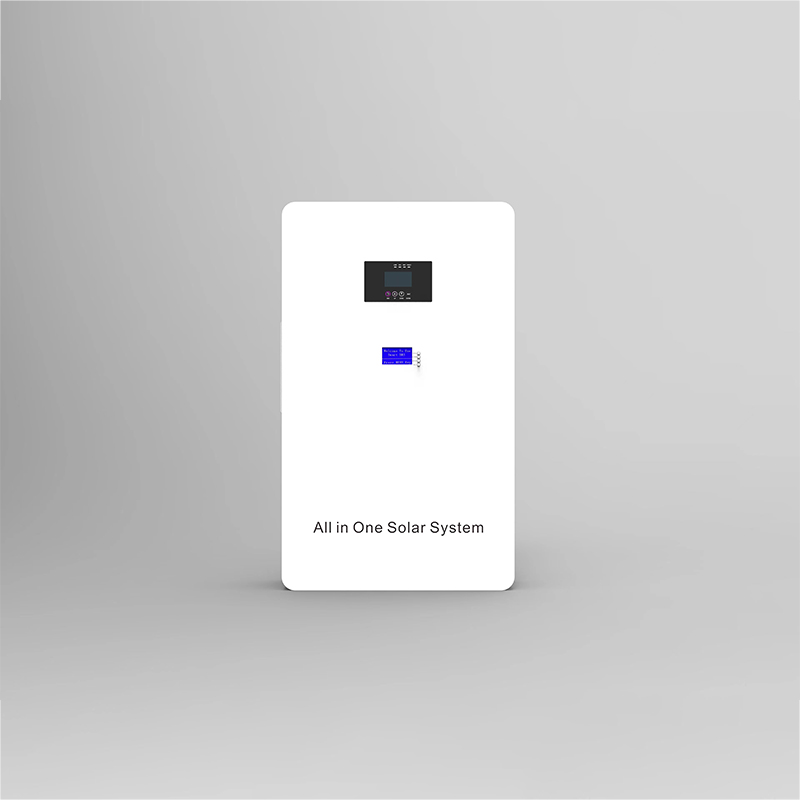

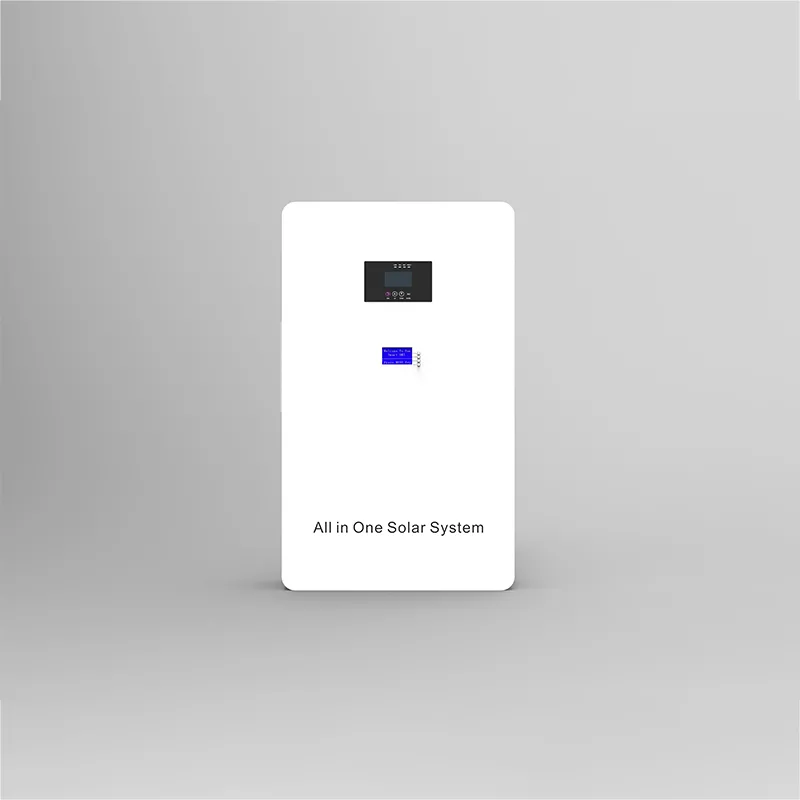

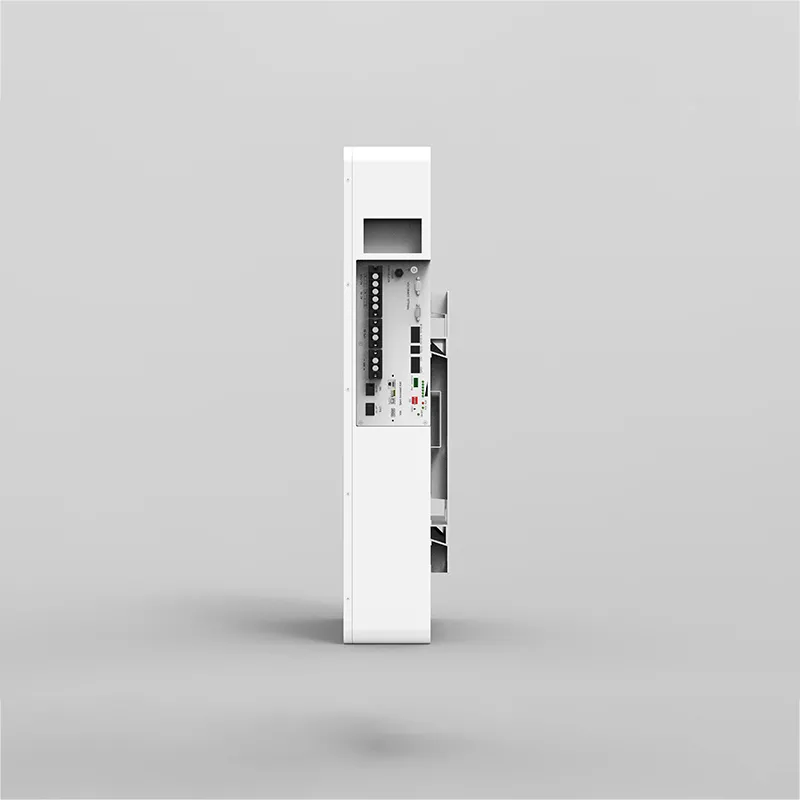

The ZEMBATT EM48100 is a wall mounted energy storage battery combining a 51.2V 100Ah LiFePO4 battery system with a built-in 5KW inverter. With approximately 5.12kWh nominal battery capacity, AC 220V output and support for mains/PV charging, it provides an integrated energy storage solution for residential, commercial and backup power applications.
The compact wall-mounted design helps reduce installation space while integrating battery storage, inverter output and communication functions into one system. It is suitable for users looking for a 5KW inverter battery system without installing separate battery and inverter units.
Batteries materials: Lithium iron phosphate
Series parallel mode (S series, P parallel): 16S1P
Nominal voltage: 51.2V
Nominal capacity: 100Ah
Size ( mm): 860*515*150
Weight: 59.9kg
Color: Optional
Output port mode: AC220V
Socket Charging way: Mains/PV
Charging current: 0.2C(standard )
Maximum charging current: Max0.5C @25℃
Charge cut-off voltage: 58.4V/CELL
Discharge way: CP/VP
Discharge current: 0.5C
Maximum discharge current: Max1C@25℃
Discharge cut-off voltage: 44.8V
According to: LCD
Communication interface: RS485/RS232/CAN
Charging operating temperature: charging: 0~+50℃
Discharge operating temperature: discharge: -20~+55℃
Built-in inverter parameters: 5KW
The quality assurance period: 36 months
The 51.2V 100Ah Wall Mounted Energy Storage Battery with 5KW Inverter can be used in a range of stationary energy storage and backup power applications.
The 51.2V 100Ah wall mounted battery can store electricity for residential backup applications and can be integrated into compatible photovoltaic energy systems.
Typical loads may include lighting, communication equipment and other compatible household electrical appliances. Actual backup time depends on connected load power and operating conditions.
With support for PV charging, the EM48100 can store electricity produced by compatible solar systems and make the stored energy available when required.
It can be considered for:
● Residential solar storage
● Small commercial solar systems
● Solar backup power systems
● Areas requiring photovoltaic energy storage
The integrated battery and inverter system can provide backup energy storage for offices and commercial facilities where continuity of selected electrical loads is required.
RS485, RS232 and CAN communication interfaces make the system suitable for energy storage projects requiring communication between batteries and compatible external equipment.
The 51.2V 100Ah Wall Mounted Energy Storage Battery with 5KW Inverter system can also be considered for hospitals, data centers, enterprises, base stations and other backup energy storage projects where the electrical requirements match the system specifications.
| Requirement | EM48100 All-in-One System | Separate Battery + Inverter |
|---|---|---|
| Battery | Integrated | Separate |
| Inverter | Built-in 5KW | Separate purchase |
| Installation Space | More compact | Usually requires more space |
| System Layout | Simplified | More components |
| AC Output | Integrated | Depends on inverter |
| Communication | RS485 / RS232 / CAN | Depends on selected devices |
| Best For | Integrated energy storage projects | Highly customized multi-component systems |
If your project requires a compact battery and inverter all-in-one system, the EM48100 is the more straightforward configuration.
If the project requires a different inverter capacity, much larger battery storage or a highly customized system architecture, a separate or modular energy storage configuration may be more appropriate.
Before selecting a wall mounted inverter battery, buyers should compare several key specifications with their actual power requirements.
The EM48100 provides approximately 5.12kWh nominal battery energy.
Actual usable backup time depends on:
● Total connected load
● Inverter efficiency
● Battery discharge conditions
● Required reserve capacity
● Operating temperature
For example, a project with relatively low continuous power demand can normally operate longer than a project running several high-power appliances simultaneously.
The integrated inverter is rated at 5KW.
Before purchasing, calculate the total operating power and startup power of the equipment that will be connected to the system.
For equipment with motors, compressors, pumps or other high startup-current loads, provide the equipment specifications to ZEMBATT before confirming the system configuration.
The EM48100 supports:
● Mains charging
● PV charging
For solar projects, the photovoltaic array and associated system configuration should be matched to the electrical requirements of the energy storage system.

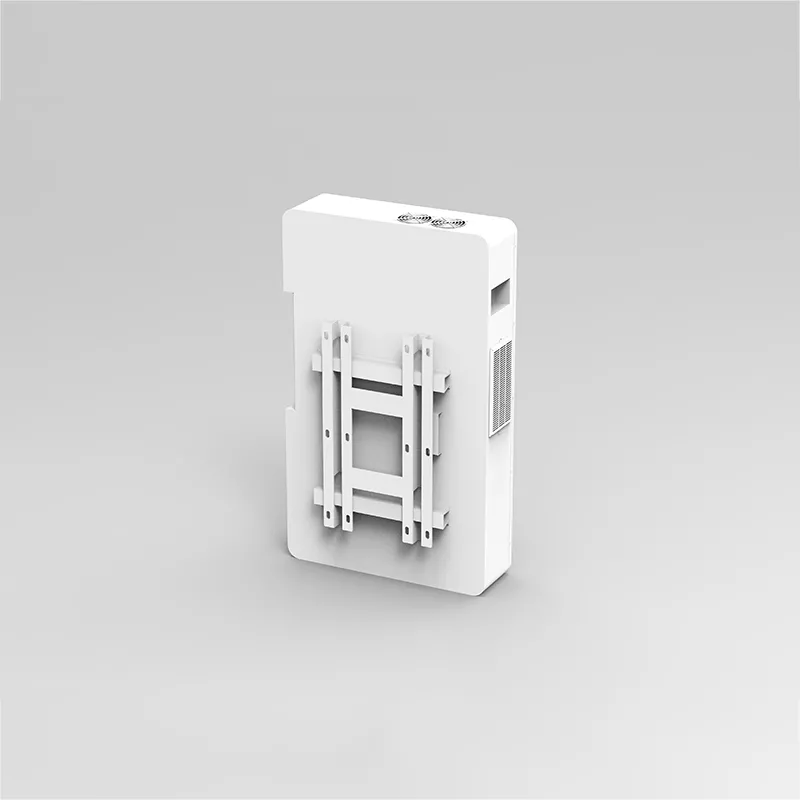

The battery measures 860 × 515 × 150 mm and weighs approximately 59.9 kg.
The installation wall and mounting structure should therefore provide sufficient strength and installation clearance.
The EM48100 provides RS485, RS232 and CAN communication interfaces.
Before ordering, confirm the communication protocol and compatibility requirements of other equipment used in your energy storage system.
Looking for a compact 51.2V 100Ah LiFePO4 battery with a built-in 5KW inverter?
Send ZEMBATT your required load power, backup time, charging source, application and order quantity. Our team can help you evaluate whether the EM48100 is suitable for your residential, solar or commercial energy storage project.
