Applicable scope: hospital, bank data center, base frame type home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Basic Parameters

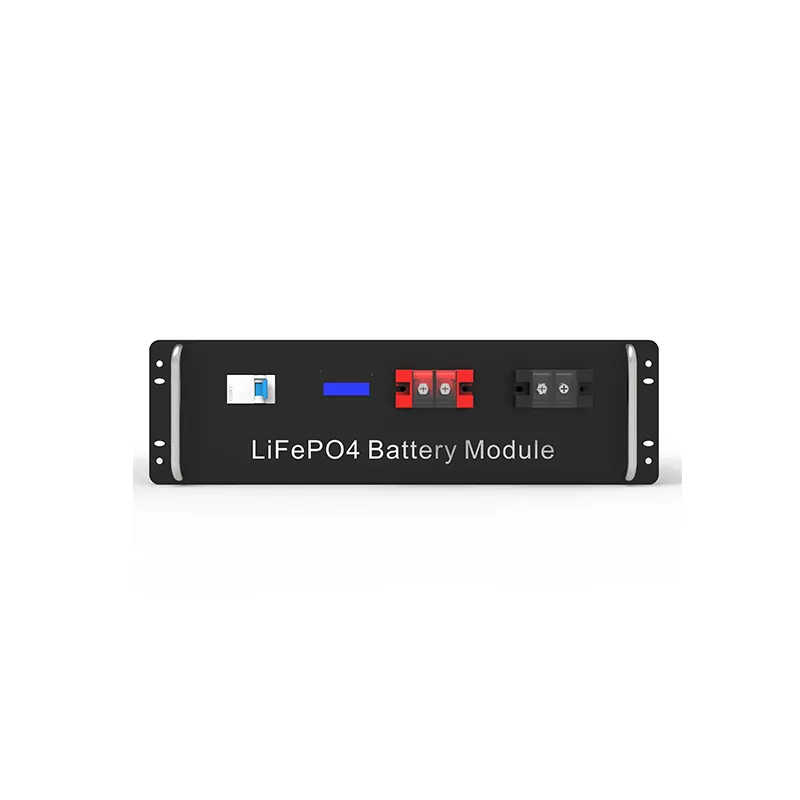

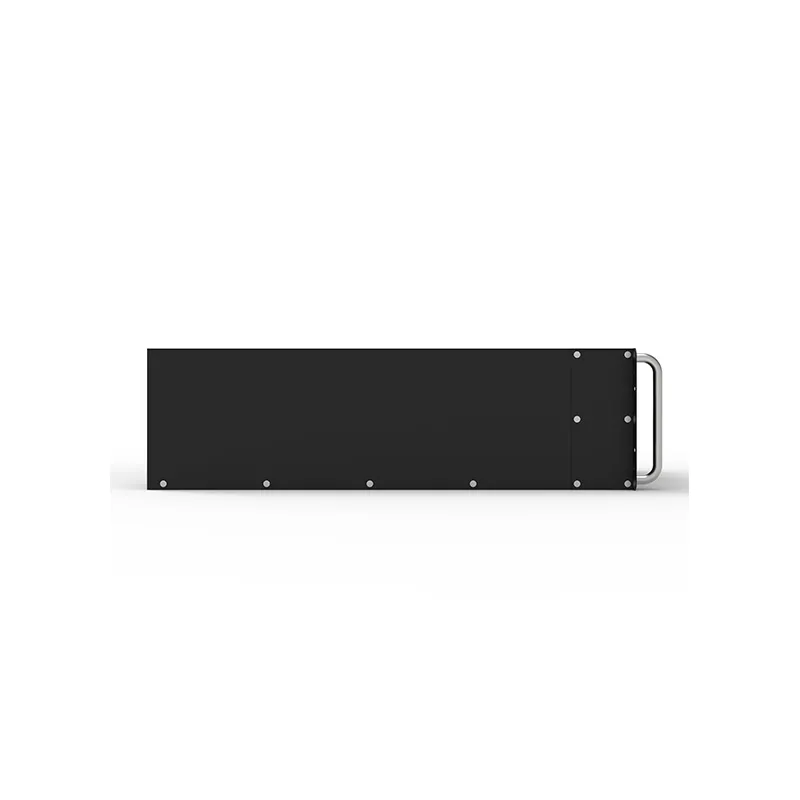

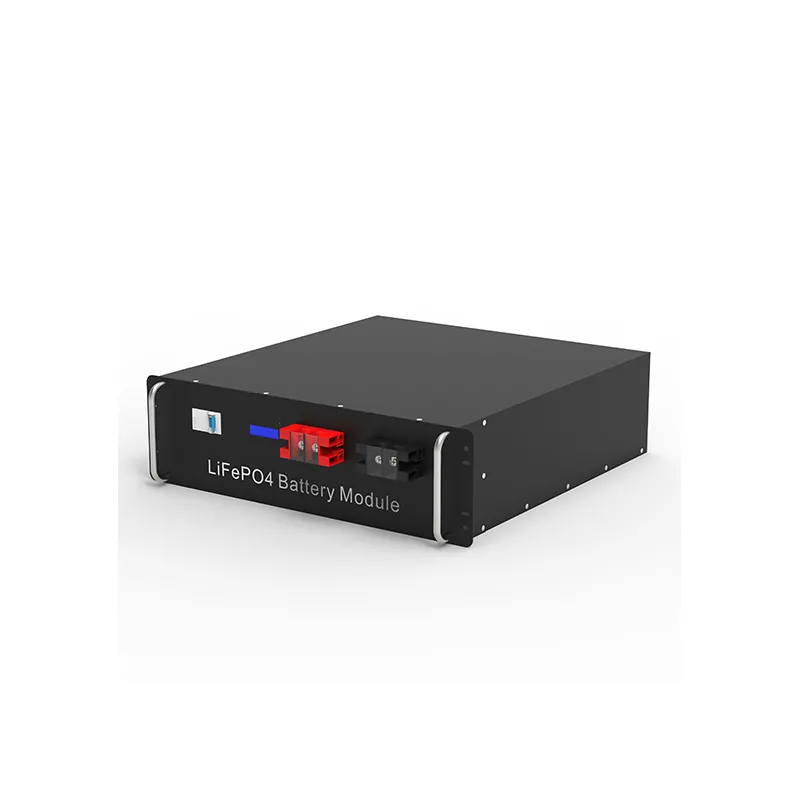

The ZEMBATT EM24100R is a 25.6V 100Ah rack mounted LiFePO4 battery designed for compact backup power and stationary energy storage systems. With approximately 2.56kWh of nominal energy, it is suitable for projects that need a relatively small 24V-class battery module while retaining the installation advantages of a rack-mounted design.
Its 8S1P LiFePO4 configuration, terminal output and parallel support make the 25.6V 100Ah 2.56kWh Rack Mounted LiFePO4 Battery suitable for telecom, office backup, base stations and other compatible energy storage systems.
Batteries materials: Lithium iron phosphate
Series parallel mode (S series, P parallel): 8S1P
Nominal voltage: 25.6v
Nominal capacity: 100Ah
Size(mm): 475*450(492)*133
Weight: 36kg
Color: Optional
Parallel support: Parallel terminals are supported
Output port mode: terminal
Charging way: CC/CP/VP
Charging current: 0.2C(standard )
Maximum charging current: Max0.5C @25C
Charge cut-off voltage: 29.2V/CELL
Discharge way: CC/CP/VP
Discharge current: 0.5C
Maximum discharge current: Max1C @25℃
Discharge cut-off voltage: 22.4V
Charging operating temperature: charging: 0~+50℃
Discharge operating temperature: discharge 20~+55℃
The quality assurance period: 36 months
The EM24100R 25.6V 100Ah 2.56kWh Rack Mounted LiFePO4 Battery is suitable when the project operates on a 24V-class DC architecture and does not require a large amount of stored energy.
Typical applications include:
● Telecom equipment backup
● Communication base stations
● Office backup systems
● Small equipment rooms
● Small-scale energy storage systems
● UPS and uninterrupted backup applications
If longer runtime is required while maintaining a 25.6V system voltage, the 200Ah EM24200R should be considered instead.
The 25.6V 100Ah configuration provides approximately 2.56kWh of nominal energy.
Yes. The product supports parallel terminals.
It can be used in compatible telecom, base station, office, enterprise backup and stationary energy storage applications.
Choose the EM24200R when you need the same 25.6V system voltage but approximately twice the stored energy.
Send ZEMBATT your system voltage, required backup time, load power and required battery capacity. We can help determine whether the EM24100R 2.56kWh rack battery is suitable for your project.
