Applicable scope: hospital, bank data center, base frame type home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Basic Parameters

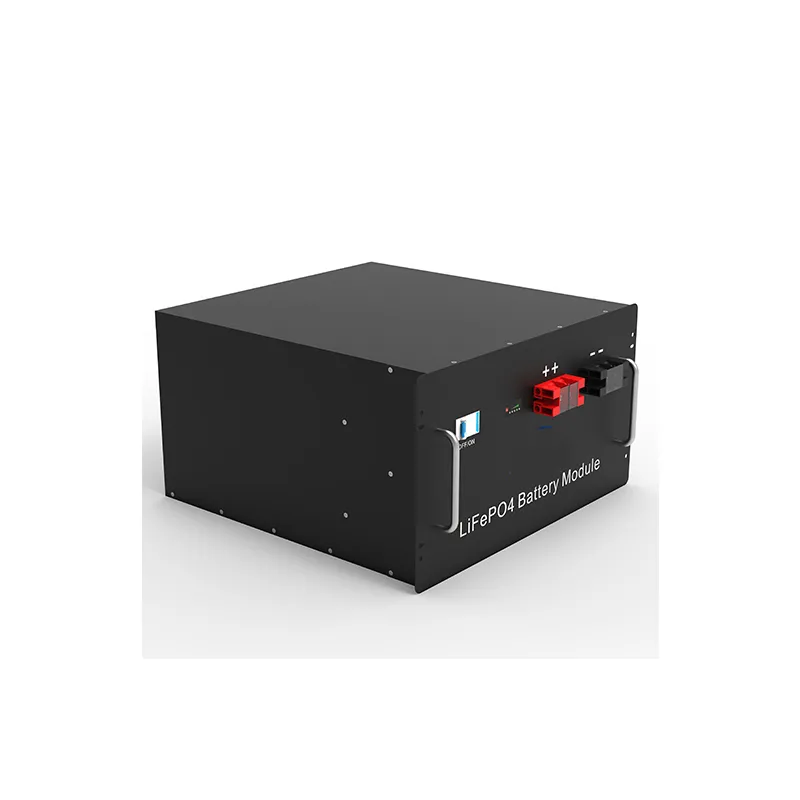

The ZEMBATT EM24200R is a 25.6V 200Ah rack mounted LiFePO4 battery providing approximately 5.12kWh of nominal energy.
It is designed for 24V-class energy storage projects that require more runtime than a standard 100Ah battery while maintaining the same system voltage.
With parallel terminal support, LCD display and a rack-mounted structure, the EM24200R is suitable for communication systems, enterprise backup, offices, base stations and stationary energy storage installations.
Batteries materials: Lithium iron phosphate
Series parallel mode (S series, P parallel): 8S2P
Nominal voltage: 25.6V
Nominal capacity: 200Ah

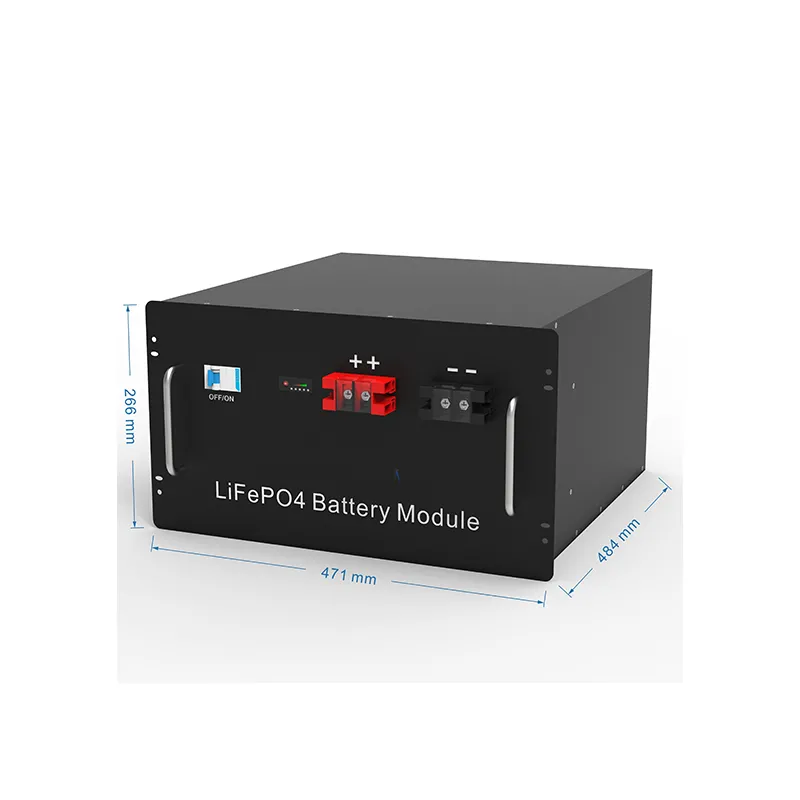

Size( mm): 471*440(484)*266
Weight: 67kg Color: Optional
Parallel support: Parallel terminals are supported
Output port mode: terminal
Charging way: CC/CP/VP ++
Charging current: 0.2C(standard )
Maximum charging current: Max0.5C @25℃
Charge cut-off voltage: 29.2V/CELL
Discharge way: CC/CP/VP
Discharge current: 0.5C
Maximum discharge current: Max0.5C@25℃
Discharge cut-off voltage: 22.4V
According to: LCD
Charging operating temperature: charging 0~+50℃
Discharge operating temperature: discharge. -20~+55℃
The quality assurance period: 36 months
● Telecom backup
● Communication base stations
● Office energy storage
● Enterprise backup systems
● Equipment room backup
● UPS applications
● Small commercial energy storage
For projects that require more runtime from a 24V-class battery system, send ZEMBATT your load and backup requirements to confirm whether the EM24200R is the right configuration.
