Applicable scope: hospital, bank data center, base frame type home, enterprise energy storage backup power supply, wind complementary system, office, military, base station and other uninterrupted energy storage power supply.
Basic Parameters

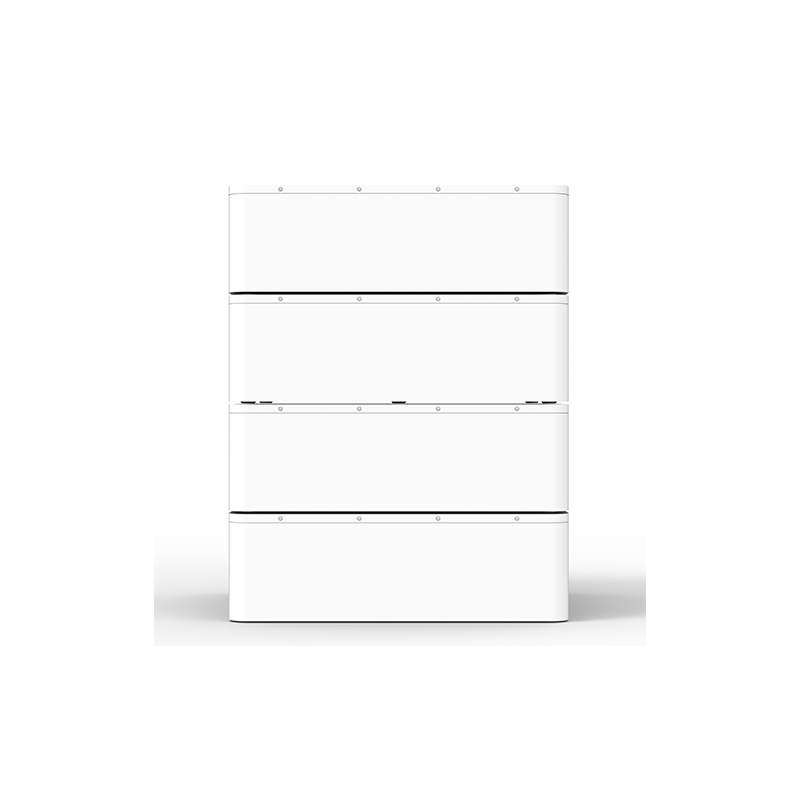

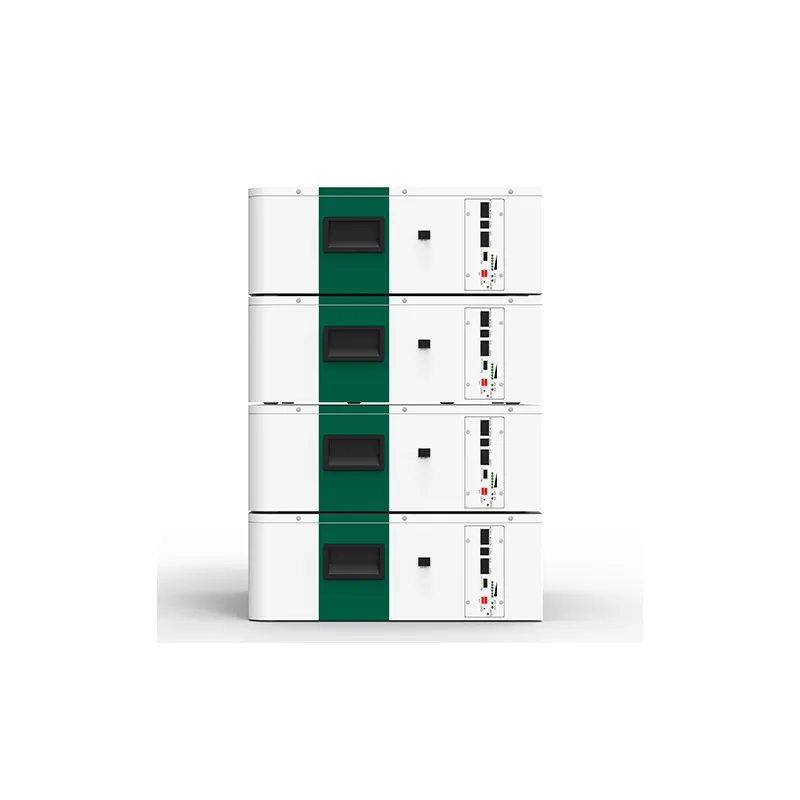

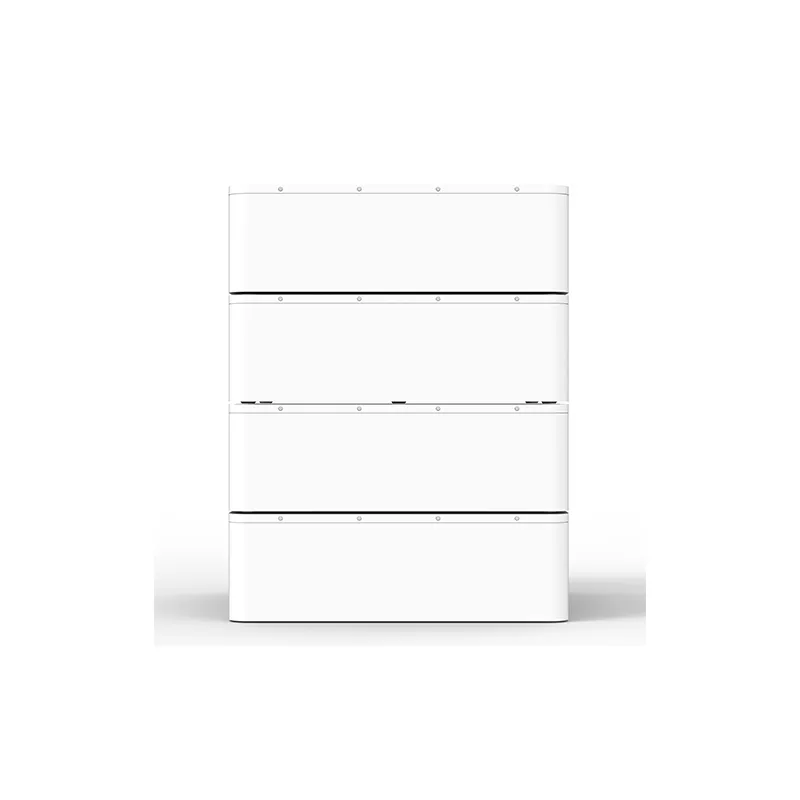

The ZEMBATT EM48100 is a 51.2V 100Ah superposition energy storage battery designed for residential, commercial and backup power applications. Using LiFePO4 battery chemistry, it provides approximately 5.12kWh of nominal energy in a compact modular structure.
The superposition design allows the battery system to be configured in a structured energy storage setup, while RS485, RS232 and CAN communication interfaces support integration with compatible inverters, monitoring systems and energy management equipment.
Batteries materials: Lithium iron phosphate
Series parallel mode (S series, P parallel): 16S1P
Nominal voltage: 51.2V
Nominal capacity: 100Ah
Size(mm): 610*545*240
Weight: 50kg
Color: Optional
Parallel support: Parallel terminals are supported
Output port mode: terminal
Charging way: CC/CP/VP
Charging current: 0.2C(standard )
Maximum charging current: Max0.5C @25℃
Charge cut-off voltage: 58.4V/CELL
Discharge way: CC/CP/VP
Discharge current: 0.5C
Maximum discharge current: Max0.6C @25C
Discharge cut-off voltage: 44.8V
Communication interface: RS485/RS232/CAN
Charging operating temperature: charging: 0~+50℃
Discharge operating temperature: discharge: -20~+55℃
The quality assurance period: 36 months
The 51.2V 100Ah 5.12kWh Superposition Lithium Battery can be considered for:
● Home energy storage
● Office backup power
● Enterprise energy storage
● Telecom base stations
● Bank and data center backup
● Wind and renewable energy storage
● UPS and uninterrupted backup systems
The 51.2V 100Ah 5.12kWh Superposition Lithium Battery is suitable when:
● Your system uses a 48V-class battery architecture
● Around 5.12kWh nominal energy is sufficient
● You want a modular superposition battery structure
● CAN, RS485 or RS232 communication is required
● Future parallel expansion may be required
For projects requiring significantly longer backup time or higher energy storage capacity, the EM48400 should be considered.
| 5.12kWh | Approx. 20.48kWh | |
| Configuration | 16S1P | 16S4P |
| Weight | 50 kg | 200 kg |
| Main Direction | Standard energy storage | High-capacity storage |
| Warranty | 36 Months | 60 Months |
Choose the EM48100 when moderate capacity and compact installation are the priority.
Choose the EM48400 when longer backup duration and much higher stored energy are required.
The EM48100 is rated at 51.2V 100Ah, providing approximately 5.12kWh of nominal energy.
It uses lithium iron phosphate, or LiFePO4.
Yes. Parallel terminals are supported.
RS485, RS232 and CAN are listed.
The listed warranty period is 36 months.
Send ZEMBATT your load power, required backup duration, inverter information and target system capacity to confirm whether the EM48100 is suitable for your project.
